How to connect Sigma LT and Sigma 2 load banks and control them altogether?
This is made possible through utilizing Sigma Gateway and its modes. Sigma LT and Sigma 2 load banks can be controlled over Sigma Network Pro, Modbus TCP/IP, Sigma Handheld, Sigma PC and Sigma PC Basic.
Please refer to the diagrams below for the different connection options.

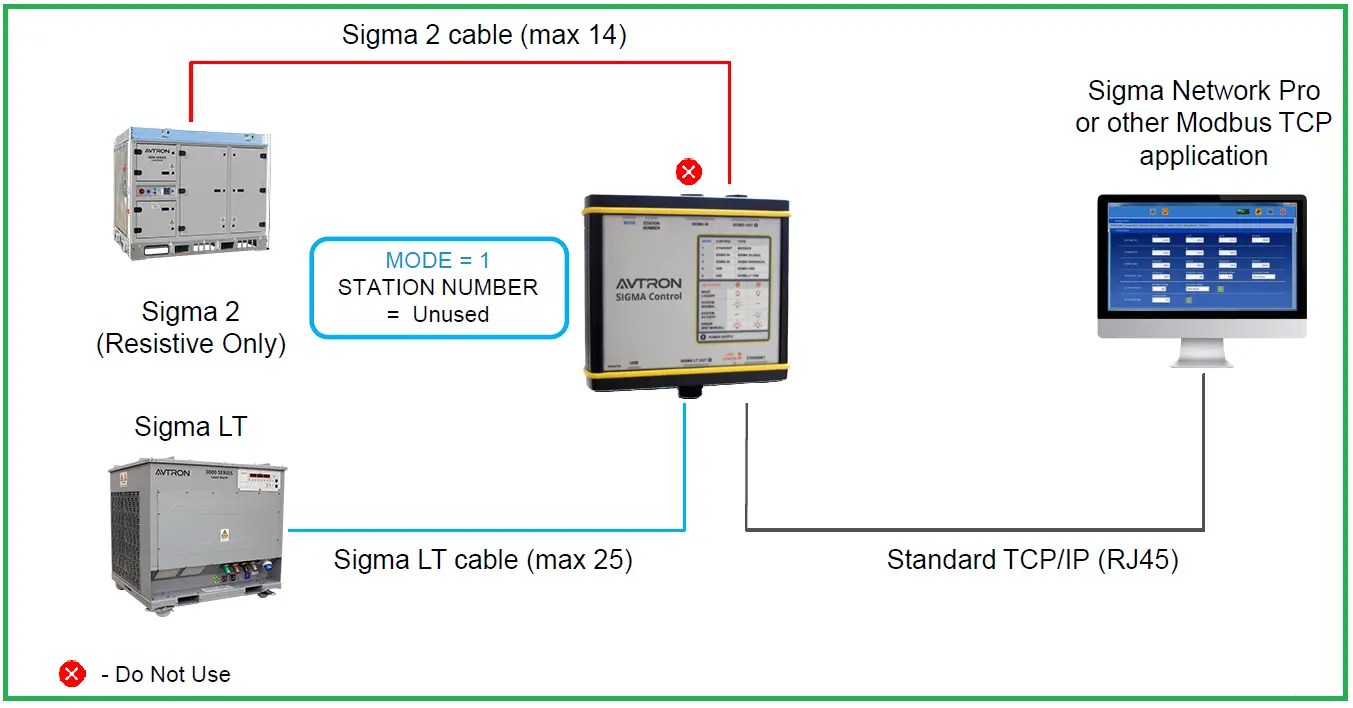

SIGMA Gateway set to Mode 1
SIGMA Gateway set to Mode 2
SIGMA Gateway set to Mode 3

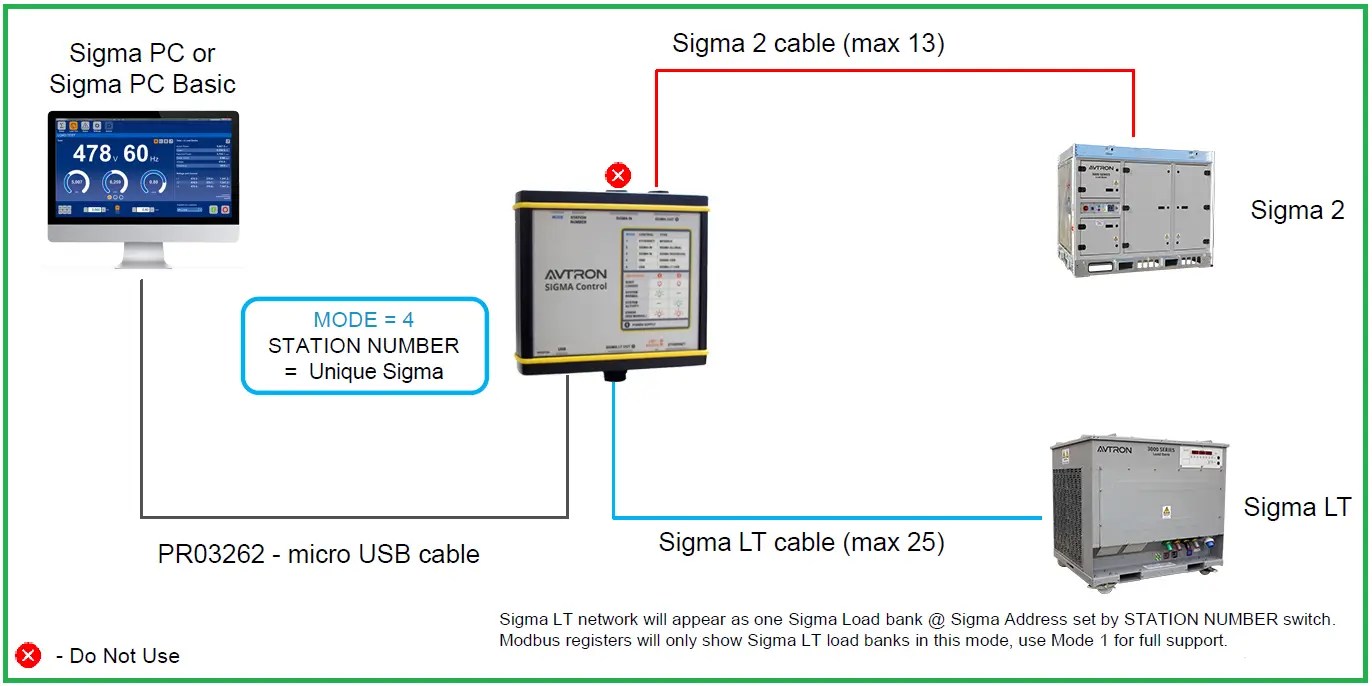

SIGMA Gateway set to Mode 4
