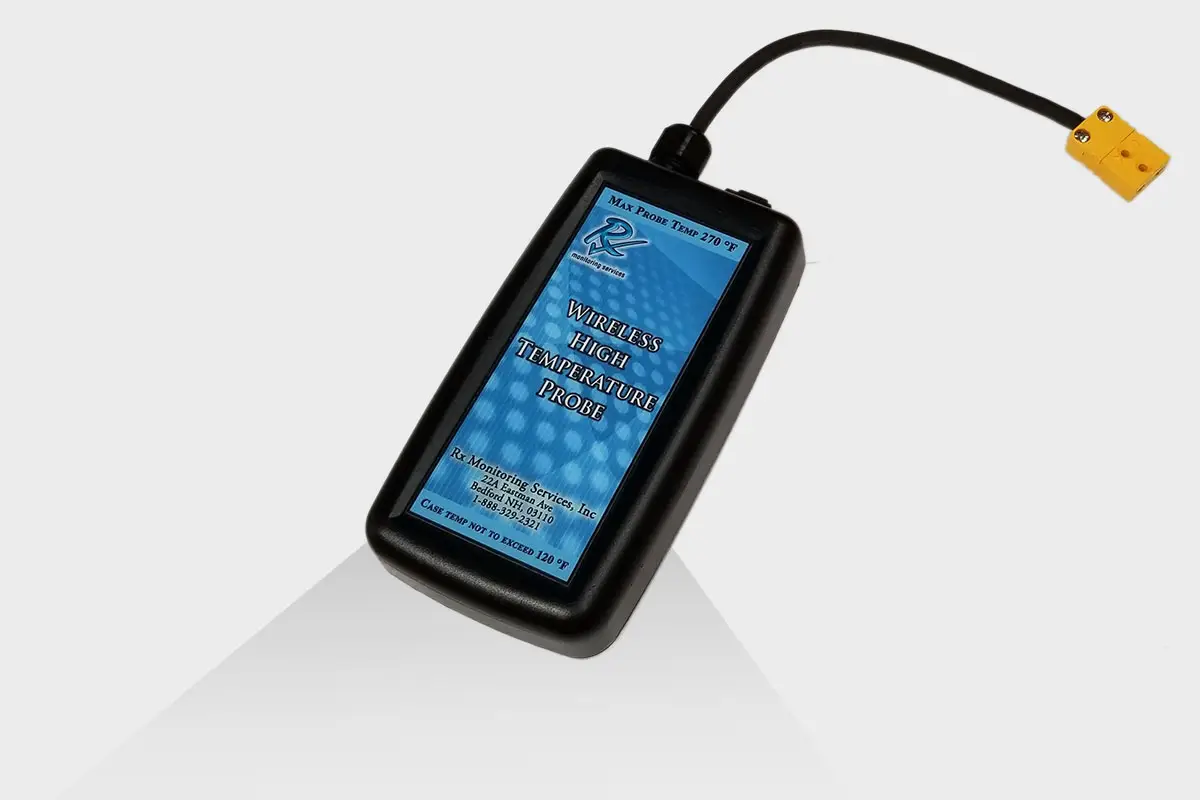

High Temperature Probe
The Wireless High Temperture is a monitoring device designed with commissioning agents requirements. The device wirelessly communicates with the Cx Monitor (Up to 100 data points) providing the data in one location. Using Type K thermocouples the end user can select the type of measuring device that best ts their testing needs.
Specifications
| Table Header | |
|---|---|
|
GENERAL SPECIFICATIONS |
|
|
Resolution |
14 bit resolution 0.45°F resolution |
|
Type K Thermocouple range |
(-20°F – 500°F)
|
|
Battery |
• 2 week baery life at 4 second log interval • Power Requirements: 2 AA Batteries |
|
READINGS |
|
|
Thermocouple ( Typical) |
• Accuracy: 4.0°F or 0.75%, whichever is greater • Response time: 2.9 seconds, 63.2% of a 25-77°C step change per method ASTM E839 |
|
Device |
• Accuracy: +/- 3 °F • Resolution: 0.45°F |
|
ADDITIONAL INFORMATION |
|
|
Dimensions |
3”x 4.5”x 1.5” (L/H/W) |
|
Range |
• Wireless Indoor up to 100 • Line of Sight up to 1 mile |
